Compact IPC
Designed to function as the intelligent edge for manufacturing equipment, IPC-series is an ultra-compact modular system equipped with 2/4 PCIe/PCI slots for integrating diverse add-on cards, such as I/O cards, motion cards, vision cards, and GPU cards to support machine control and vision applications, or provide artificial intelligence for automated optical inspection (AOI) operations.

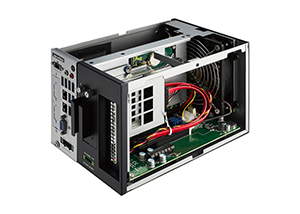

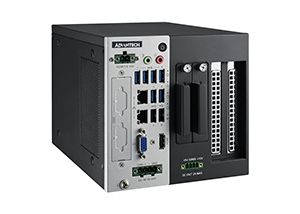

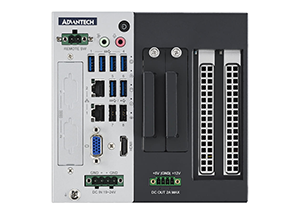

IPC-220
Compact Industrial Computer Chassis for PCE-2000 Series CPU Board
- Compact IPC chassis with two front expansion slots
- Shockproof drive bay for two 2.5″ HDD/SSD
- Single-side I/O for easy maintenance
- Support Advantech iDoor
- Bidirectional to mount on wall or workbench
- Qualified for AWS(Amazon Web Service) IoT Greengrass

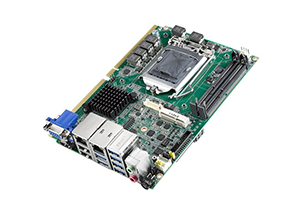

IPC-220 V1
Compact Industrial Computer System with 6th/7th Gen Intel® Core™ i CPU Socket (LGA 1151)
- Intel® 6th/7th Gen Core™ i CPU socket-type (LGA1151) with Intel® Q170/H110 chipset
- 3 x independent displays (third display output via optional cable)
- 2 x GigaLAN and 6 x USB 3.0
- 2 x RS-232/422/485 and 2 x RS232 serial ports
- 2 x 2.5″ HDD/SSD, and 1 x mSATA
- 19 ~ 24 VDC input power range
- Support Power Out 12V/5V – 2A
- Supports Advantech i-Door
- Versatile LED for system status and alarm
- Supports Advantech SUSIAccess and embedded software APIs
- Chassis IPC-220 compatible with motherboard PCE-2029 and PCE-2129

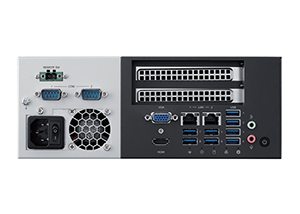

IPC-221
Compact Industrial Computer Chassis for PCE-2000 Series CPU Board
- Compact IPC chassis with two front expansion slots
- Shockproof drive bay for two 2.5″ HDD/SSD
- Single-side I/O for easy maintenance
- Support Advantech iDoor
- Bidirectional to mount on wall or workbench
- Qualified for AWS (Amazon Web Service) IoT Greengrass

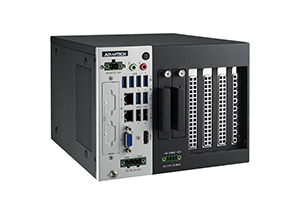

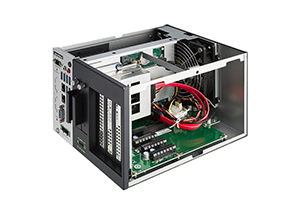

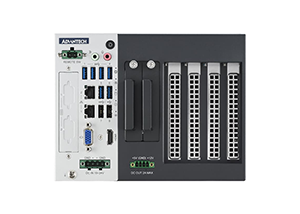

IPC-240
Compact Industrial Computer Chassis for PCE-2000 Series CPU Board
- Compact IPC chassis with four front expansion slots
- Shockproof drive bay for two 2.5″ HDD/SSD
- Single-side I/O for easy maintenance
- Support Advantech iDoor
- Bidirectional to mount on wall or workbench
- Qualified for AWS(Amazon Web Service) IoT Greengrass
IPC-240 V1
Compact Industrial Computer System with 6th/7th Gen Intel® Core™ i CPU Socket (LGA 1151)
- Intel® 6th/7th Gen Core™ i CPU socket-type (LGA1151) with Intel® Q170/H110 chipset
- 3 x independent displays (third display output via optional cable)
- 2 x GigaLAN and 6 x USB 3.0
- 2 x RS-232/422/485 and 2 x RS232 serial ports
- 2 x 2.5″ HDD/SSD, and 1 x mSATA
- 19 ~ 24 VDC input power range
- Support Power Out 12V/5V – 2A
- Supports Advantech i-Door
- Versatile LED for system status and alarm
- Supports Advantech SUSIAccess and embedded software APIs
- Chassis IPC-240-01A1 compatible with motherboard PCE-2029 & PCE-2129
- Chassis IPC-240-00A1 compatible with motherboard PCE-2129

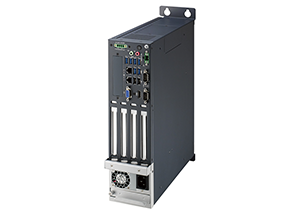

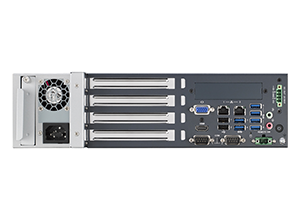

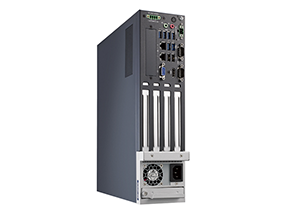

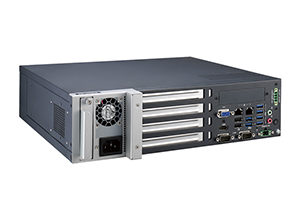

IPC-242
Compact Industrial Computer Chassis for PCE-2000 Series CPU Board and 250W PSU
- Compact IPC chassis with two front expansion slots
- Compact design for small cabinet or limited space
- 2 – 3 independent displays (HDMI/VGA/DP or DVI)
- 4 expansion slots (PCIe/PCI)
- Rich I/O: 2 x GbE, 6 x USB3.2, 1 x NVMe M.2, 2 x SATAIII, 2 x RS-232/422/485 Serial Ports, 1 x internal USB 2.0
- 1 x swappable HDD/SSD tray
- 250W Flex ATX power support
- Supports power output 5V/12V (max. 2A)
- Dimension: 333 (W) x 269.2 (D) x 88 (H) mm

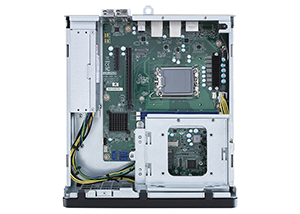

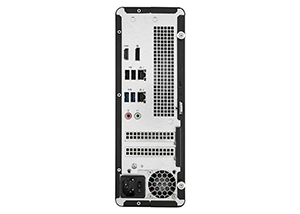

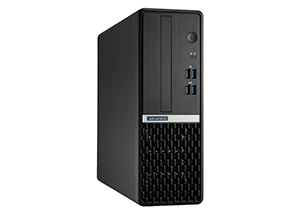

IPC-320
Compact Size Tower IPC with 12th / 13th Gen Intel® Core™ i CPU Socket (LGA 1700) and 250W PSU
- Intel® 12th / 13th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor with H610E chipset
- Design for operator IPC and application with space limit
- Dual USB 3.2 and dual USB 2.0 port on both front and rear side
- Dual Independent Display (HDMI/ DP)
- 2 low profile Expansion slots (PCIe x16 and PCIe x4)
- Built in with 250W 12V and 5V output only single power supply
- Qualified for Amazon Web Service(AWS) IoT Greengrass
- Support Windows 11 IoT Enterprise LTSC
