Advantech Embedded PCs (EPC) are a full range enclosures systems designed for Mini-ITX motherboards and 3.5″ single board computers, featuring optimized mechanical design and flexible I/O interface options, assuring maximized flexibility for design in efficiency.
- EPC-S Series are slim and fanless system designed for embedded single board computers.
- EPC-C Series are compact embedded computers with standard chassis and compact solution, which the Series are designed for high-end 3.5” MIO-Compact or 3.5” single board computers with edge AI.
- EPC-R Series are Arm-base embedded PC designed for 3.5” motherboards.
- Advantech UTX IoT gateway system, an industrial-grade system in a 4.6″(L) x 5.6″(W) x 1.4″(H) box, provides Mini ITX bundled with the Intel® IoT Gateway Solutions for Internet of Things (IoT). UTX is also easy to implement for industrial computer and embedded computer, which are ideal for smart city, smart energy, information system and industrial automation.
EPC-S Series are slim and fanless system designed for embedded single board computers.

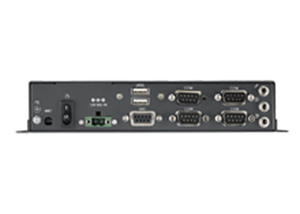

Embedded 3.5 SBC system for PCM-9310
- Intel® Braswell Celeron N3160/N3060, Atom E8000, DDR3L-1600MHz SODIMM up to 8GB
- Fanless slim system with wall-mount & desk mount removable flange, default support VESA mount & Din-rail mount at bottom side
- Supports 2 x Intel GbE, 8 x USB, HDMI, VGA, 4 x COM and 1 x Digital IO
- Built-in 1 x full size mSATA and 1 x full size MiniPCIe w/SIM
- Supports iManager, SUSI APIs, WISE-DeviceOn and Edge AI Suite
- *No RED certification

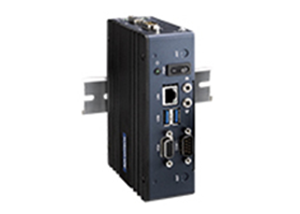

Intel Atom N3350 DC Barebone Embedded SBC Fanless Slim System
- Intel® Atom N3350 Dual Core SoC
- Semi-Industry Fanless slim systen, Din Rail or Wall mount design
- VGA display, COM port, 2 USB3.0, 1 LAN at Front
- 1 DIO port, 1 COM port at Side
- Supports iManager, SUSI APIs, WISE-DeviceOn and Edge AI Suite
- *No RED certification
Intel® Atom™ E3900 series Embedded SBC Fanless Slim System
- Intel® Atom™ E3900 series
- Onboard 4GB LPDDR4-2400MT/s, 32GB eMMC
- Semi-Industry Fanless slim systen, Din Rail or Wall mount design
- Support HDMI x 1 , GbE x 2 USB 3.0 x 2, COM x 2, DIO x 2
- Flexible expansion M.2 E key, mSATA/mPCIe
- Supports iManager, SUSI APIs, WISE-DeviceOn and Edge AI Suite
- *No RED certification
EPC-C Series are compact embedded computers with standard chassis and compact solution, which the Series are designed for high-end 3.5” MIO-Compact or 3.5” single board computers with edge AI.

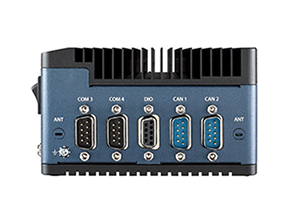

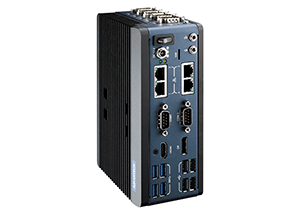

Intel® 8th. Gen. Core i7/i5 Processor Fanless Embedded System
- Intel 8th. Gen. Core Processor with Quad/Dual Cores (i7/i5), TDP 15W
- Semi-Industry Fanless slim systen, Din Rail or Wall mount design
- HDMI + DP* (Support vai MIO) dual display
- 4 GbE, 4 USB3.1, 4 USB 2.0, CAN Bus, M.2 M-Key 2280 supports NVMe, M.2 E-key 2230, M.2 B-key, 1 full size of mini PCIe, DC-in 12V
- -20 ~ 60 degree extend temperature operating
- Supports iManager, SUSI APIs, WISE-DeviceOn and Edge AI Suite
- *No RED certification
EPC-R Series are Arm-base embedded PC designed for 3.5” motherboards.

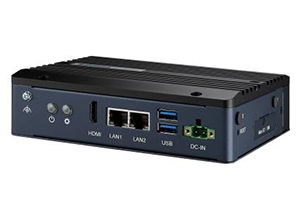

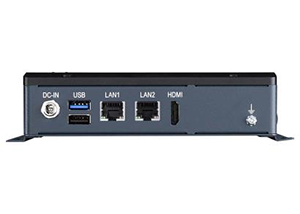

Rockchip RK3399 Cortex-A72 UIO40-Express Edge AI Box Computer with 4K display, 2xLan.
- Rockchip RK3399 ARM Dual Cortex-A72 and Quad Cortex-A53 1.8 GHz

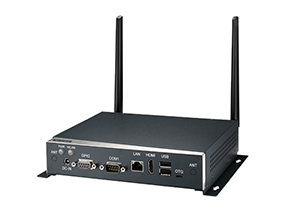

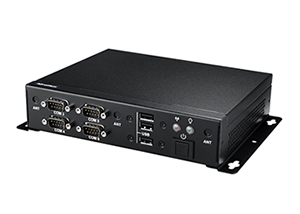

Rockchip RK3288 Cortex-A17 ARM Based Box Computer with 4K display, 6 USB2.0, 6 UART, 1 GbE and 8 GPIO
- Rockchip ARM Cortex-A17 RK3288/RK3288K Quad core up to 1.6GHz
- Onboard 2GB DDR3L memory and 8GB eMMC
- Support 4K H.264/H.265 Video decoding, OpenVG1.1, OpenGL ES1.1/2.0/3.0, OpenCL1.1, DrectX11
- Support HDMI 3840 x 2160 at 60Hz, VGA 1920 x 1200 at 60Hz
- 6 UART, 5 USB2.0, 1 USB OTG, 1GbE, 8GPIO
- Support M.2 slot for WIFI/BT module, Mini-PCIe slot for 4G module
- Support Linux and Android
Industrial-Grade Nvidia Jetson Barebone PC
- NVIDIA Jetson Module Compatible: Jetson Xavier™ NX, Jetson™ TX2 NX and Jetson Nano™
- Fanless ultra-compact Barebones PC with thermal reference design
- AIM-Linux software service with peripheral driver integration supports NVIDIA JetPack SDK
- Accepts flexible application-oriented UIO40-Express I/O expansion cards
- Industrial and Rugged design supports wide operating temperatures, power input, and vibration tolerance
- WISE-DeviceOn supported for quick AI deployment at scale
Qualcomm APQ-8016 Cortex-A53 ARM Based Box Computer
- Qualcomm ARM® Cortex®-A53 APQ8016 Quad core up to 1.2 GHz
- Onboard 1GB/2GB LPDDR3 memory and 8GB eMMC
- 1 HDMI, 1 RS-232/422/485, 1 GbE, 2 USB 2.0, 8 GPIO
- Highly intergrated on-board wireless connectivity – Wi-Fi, BT, and GNSS
- Connevtivity expansion capability – M.2, mini-PCIe
- Wide voltage range DC power input
- Support Android, Linux and Debian

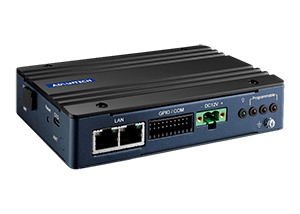

TI Sitara AM3352 Cortex-A8 Arm-Based Box Computer/ IoT Gateway
- TI Sitara AM3352,Onboard 1GB DDR/ 8GB eMMC
- 2 x RS232/485, 6 x GPIOs, 1 x USB
- 3 x Programmable LED
- TPM2.0 security enabled
- OS: Yocto Linux
- Wall mount / Din rail
- 12~24VDC /-20 ~70℃
Advantech UTX IoT gateway system, an industrial-grade system in a 4.6″(L) x 5.6″(W) x 1.4″(H) box, provides Mini ITX bundled with the Intel® IoT Gateway Solutions for Internet of Things (IoT). UTX is also easy to implement for industrial computer and embedded computer, which are ideal for smart city, smart energy, information system and industrial automation.

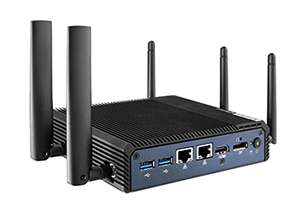

Intel® Atom® E3900/Celeron® N3350/Pentium® N4200 series fanless IoT gateway
- Intel® Apollo Lake E3900 series & N series Processor
- Palm-size form factor: 128 (L) x 152 (W) x 37 mm(H)
- Supports 2 x COM port, 1 x HDMI, 1 x Display Port, 2 x USB3.0, TPM and DCIN 12~24V
- Built-in 1x M.2 expansion slot (i.e.: Wi-Fi module), 1 x Half size Mini PCIe expansion slot (i.e.: Zigbee, module or mSATA) and 1 x Full size Mini PCIeexpansion slot (i.e.: 3G/LTE module) with 5Antennas
- Supports 1x 2.5″ HDD or SSD storage
- Wide operating temperature -20 ~ 60 °C support (With E3900 Series SoC)
- IoT SW integration: WISE-PaaS IoT software platform, AWS Greengrass, Microsoft IoT Edge
- Support OS: Windows 10, Linux OS
- Support SUSI, WISE-DeviceOn and Edge AI Suite.
