Advantech Embedded Single Board Computers (SBC) series include: 2.5″ Pico-ITX, 3.5″ SBC, PC/104, EBX and 5.25” SBC, PCM, and MI/O extension form factors. Embedded Single Board Computers (SBC) are designed with rugged solutions, high flexibility, software integration and easy expansion capabilities for industrial applications.

3.5″ Single Board Computers

Advantech’s 3.5″ embedded single board computers (SBC) measure 146 x 102 mm feature MIO extension, Mini PCIe, intel Atom, and wide temperature support.

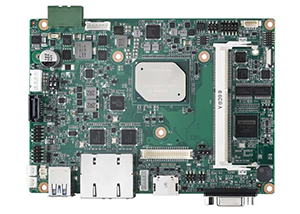

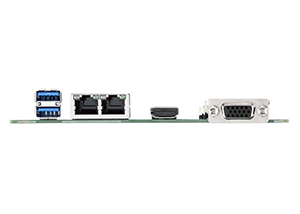

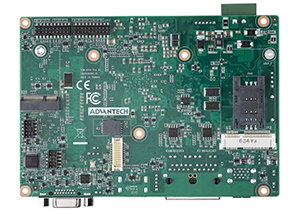

PCM-9366

Intel® Atom™ E3825 & Celeron® N2930, 3.5″ SBC, 2GB/4GB On-board Memory, VGA, 48-bit LVDS, 2GbE, Mini PCIe, PCI-104, iManager

  • Intel® Atom™ E3825 & Celeron® N2930, DDR3L-1066/1333MHz 2GB/4GB on-board memory
  • DirectX11, OpenGL3.2, OpenCL1.1, 3 independent display: VGA+LVDS/HDMI+LVDS*/Dual LVDS
  • Support PCI-104 expansion
  • 2 GbE, rich I/O: 4COM, SATA, USB3.0, SMBus/I2C, GPIO, full-size Mini PCIe, full-size mSATA
  • Supports iManager, SUSI APIs, WISE-DeviceOn and Edge AI Suite

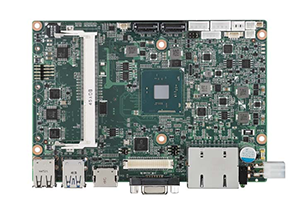

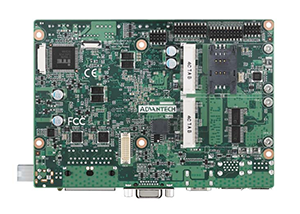

PCM-9310

Intel® Celeron N3160/N3060 SoC, Intel® Atom E8000 SoC, 3.5″ SBC, DDR3L, VGA, HDMI, 48-bit LVDS, 2GbE, Mini PCIe, mSATA, SUSI API

  • Intel® Celeron QC/DC SoC, Intel® Atom QC, DDR3L-1600MHz SODIMM up to 8GB
  • DirectX11.1, OpenGL4.2, OpenCL1.2, 3 independent display: VGA + HDMI + LVDS/eDP*
  • Rich I/O: 4 x COM, 2 x SATA, 2 x USB3.0, 4 x USB2.0, TPM2.0, SMBus/I2C, GPIO, full-size Mini PCIe w/ SIM holder, full-size mSATA
  • Supports iManager, SUSI APIs, WISE-DeviceOn and Edge AI Suite

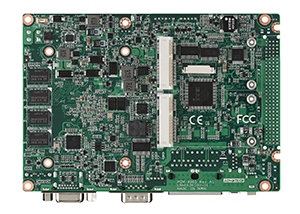

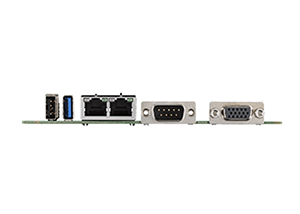

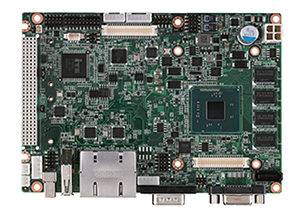

PCM-9365

Intel® Atom™ E3825 & Celeron® N2930, 3.5″ SBC, 2GB/4GB On-board Memory, VGA, 48-bit LVDS, 2GbE, Mini PCIe, PCI-104, iManager

  • Intel® Atom™ E3825 & Celeron® N2930, DDR3L-1066/1333MHz 2GB/4GB on-board memory
  • DirectX11, OpenGL3.2, OpenCL1.1, 3 independent display: VGA+LVDS/HDMI+LVDS*/Dual LVDS
  • Support PCI-104 expansion
  • 2 GbE, rich I/O: 4COM, SATA, USB3.0, SMBus/I2C, GPIO, full-size Mini PCIe, full-size mSATA
  • Supports iManager, SUSI APIs, WISE-DeviceOn and Edge AI Suite
