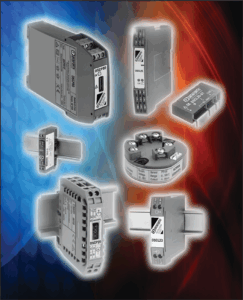

Dataforth’s DSCP series of products, along with the DSCL product line, provides a complete family of loop and universal AC/DC powered isolator and transmitter models in component, DIN rail, panel, and head-mount packages.

  • Basic loop-powered isolators
  • Wide-range AC/DC powered isolators and transmitters
  • Fixed-gain models
  • Hardware, software, and dip-switch configurable models

Depending on the model, they accept a wide range of voltage, current, thermocouple, and RTD input signals, then filter, isolate, amplify, linearize, and convert them to high-level analog outputs for use in data acquisition, test and measurement, and control system applications.

They protect measurement and control signals and connected equipment from noise, transient power surges, internal ground loops, and other hazards present in industrial environments.

Features

  • Full Family of Loop Isolators and Transmitters
  • Signal-powered Passive Loop Isolator Models
  • Wide Range 24V to 60V or 85V to 230V AC/DC Powered Models
  • Jumper and Software Configurable Models
  • 6.2mm Dip-switch Configurable Models
  • 4000Vrms Isolation
  • Multiple Channels per Package Available
  • PCB, DIN-rail, Panel, and Instrument Head Mounting Options
  • No Recalibration or Maintenance Required
  • Fault Detection of Input Signal Available
  • CE Compliant
  • Manufactured per RoHS III Directive 2015/863
